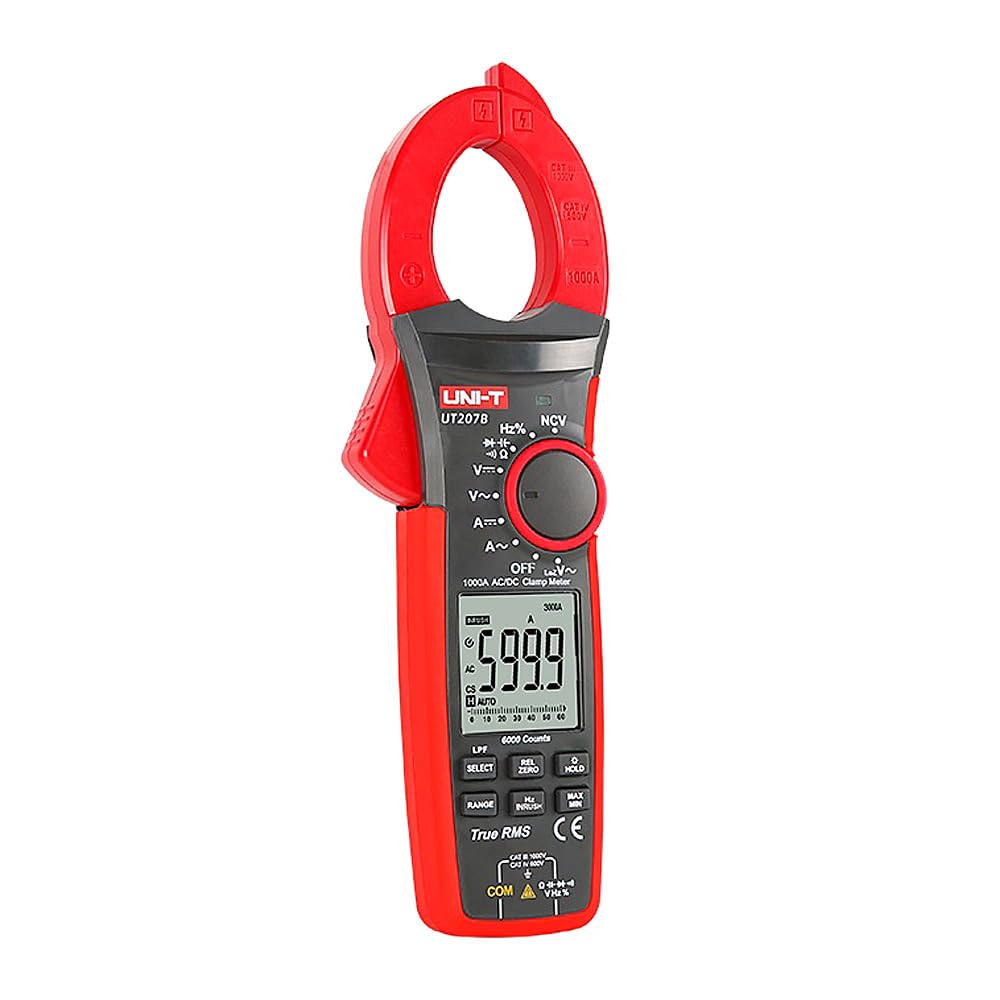

UNI-T UT207B Digital Clamp Meter DC/AC 1000A 1000V Current Voltage Tester Amperimetrica LPF ACV Auto Range 6000 Count Backlight Flashlight

About UT207B Digital Clamp Meter AC current (A)：1000A ±(2%+5) DC current (A)：1000A ±(2%+5) AC current frequency response：40Hz~400Hz Inrush current (A)：1000A ±(10%+10) AC voltage (V)：1000V±(1.2%+3) DC voltage (V)：1000V±(0.5%+5) Low pas filter (LPF ACV)：1000V±(2%+5) AC voltage frequency response：40Hz~400Hz LoZ ACV：1000V ±(2%+5) Resistance (Ω)：60MΩ±(1%+2) Capacitance (F)：60mF±(4%+5) Low voltage frequency (Hz)：10Hz~1MHz ±(0.1%+3) Duty cycle (%)：10%~90% ±(2.6%+7) Analog bar：31 Zero mode：√ Display count：6000 Jaw opening：42mm Power：1.5V battery (R03) x 3 (No include) Package include：Digital clamp meter; Test leads

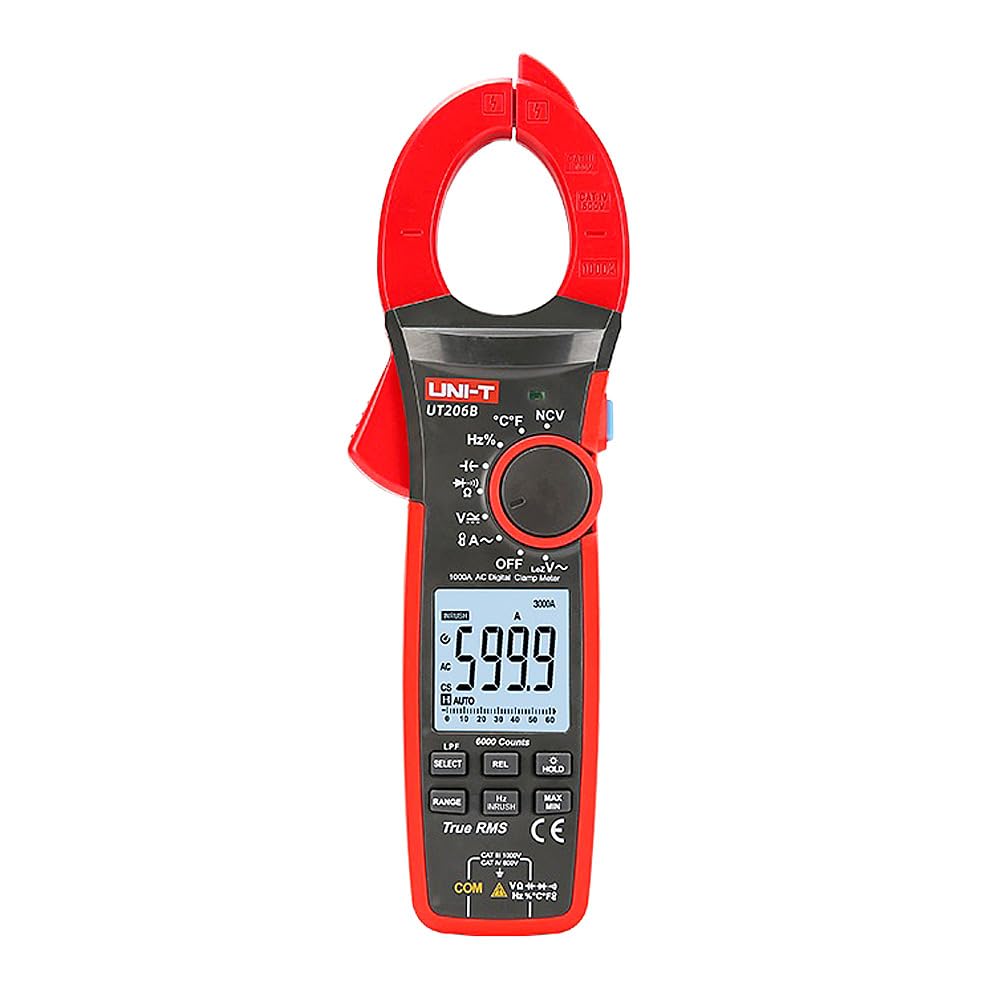

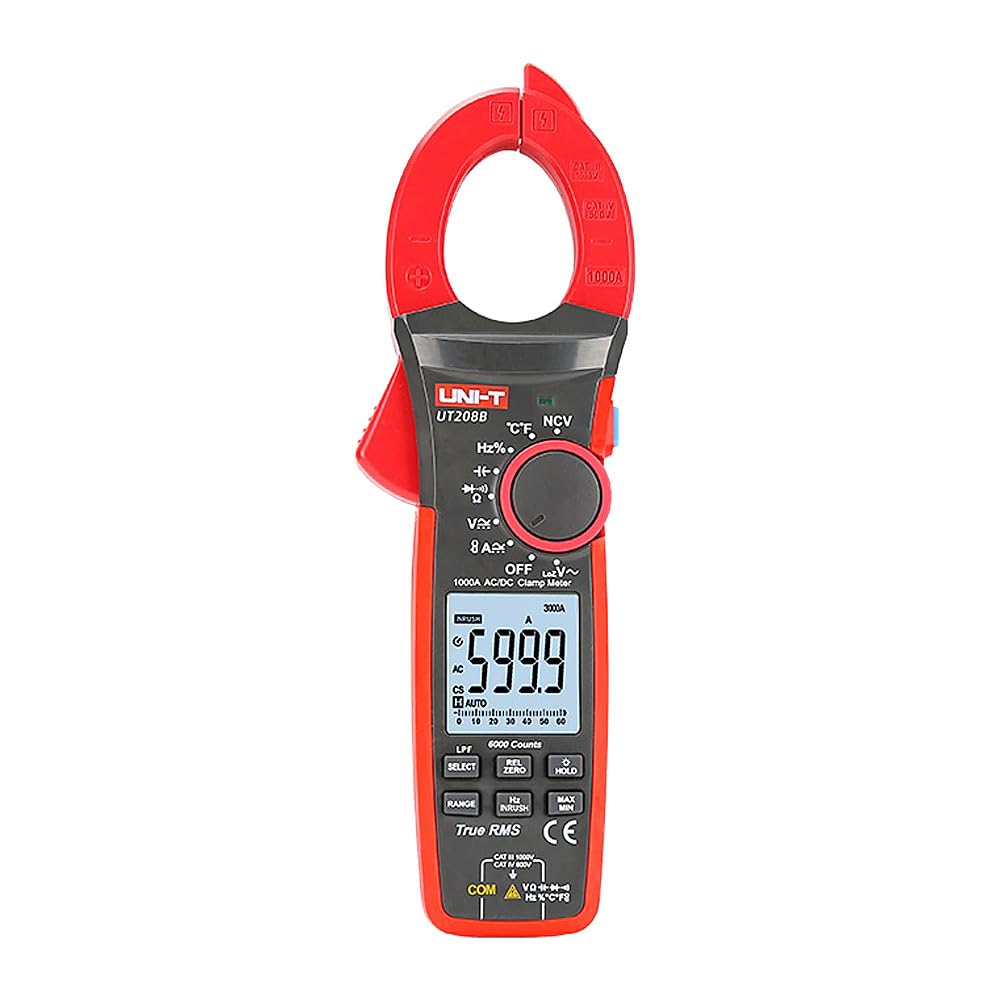

• UT200 series digital clamp meter can be used to measure AC/DC voltage, low-pass filtered LPF voltage, low-impedance Loz voltage, AC current, DC current (UT207B/UT208B only), resistance, diode, circuit on/off, capacitance, frequency, duty ratio, temperature (UT206B/UT208B only) and flexible current probe (UT206B/UT208B only).
• The digital clamp is made of high-quality aluminum alloy material, which is durable, stable in performance and long in service life. The 6000-count clamp meters with auto range, large LCD, true RMS, auto scale memory, and NCV functions.
• This current voltage tester come with LoZ mode for eliminating ‘ghost ’voltage, LPF ACV function for measuring INV and VFD voltage, and inrush current mode for capturing transient current.
• NCV Multi-Segment Display and audio/visual alarm; Flashlight button: Short press this button to turn on/off the flashlight. They conform to CAT III 1000V/CAT IV 600V safety rating andcertified by CE/ETL.
• We provide 6-month worry-free warranty and friendly customer service. If you need technical support for the loop calibrator and have any questions about the order, please feel free to contact us and we will handle it within 24 hours.
